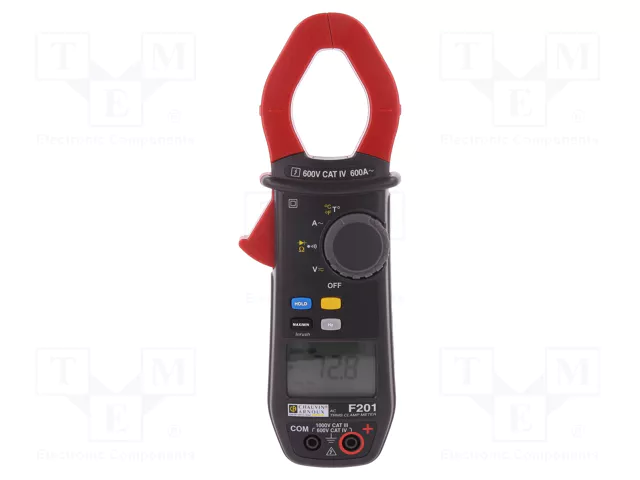

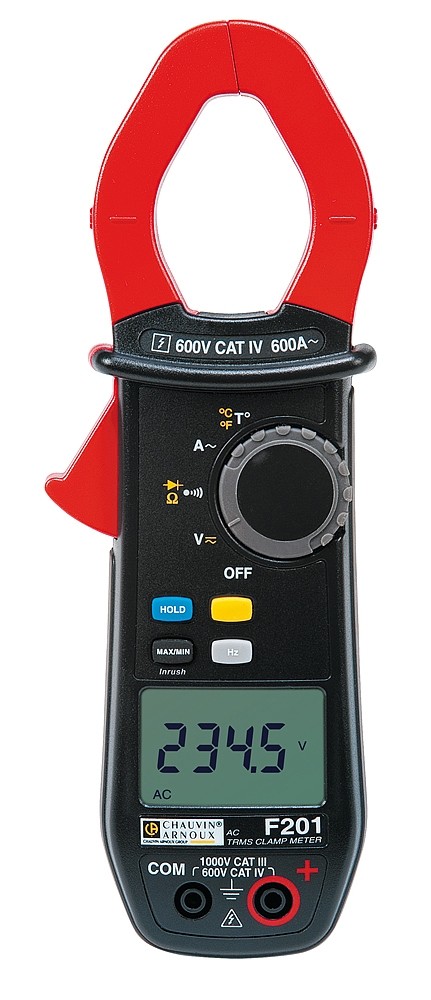

F201 TRMS Clamp Multimeter
The F201 clamp multimeter is ideal for the needs of self-employed electricians and small and medium-sized business and industries in the electrical sector
Simple to use, the clampmeter offers all the necessary functions in a single, compact solution
Equiped with a fast 12-bit TRMS digital acquisition system
6000 counts LCD display
AC and DC voltage up to 1000 V
Resistance and audible continuity
Min and Max analysis
TrueInrush current measurement
IP54 protection
Simple to use, the clampmeter offers all the necessary functions in a single, compact solution
Equiped with a fast 12-bit TRMS digital acquisition system
6000 counts LCD display
AC and DC voltage up to 1000 V
Resistance and audible continuity
Min and Max analysis
TrueInrush current measurement
IP54 protection
Supplied with
Test leads set, soft carry case, K type thermocouple, 9V battery
Technical Details
|
Attribute
|
Value
|
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 59.99kΩ |
| Model Number | F201 |
| AC Current Measurement Resolution | 0.01A |
| Best DC Current Accuracy | ±(1% rdg + 3dgts) |
| Clamp Meter Type | AC Current Clamp Meter |
| Best AC Current Accuracy | ±(1% rdg + 3dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 3dgts) |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode, Frequency, In-Rush Current, Resistance, Temperature |
| Jaw Capacity Busbars | 34mm |
| Best DC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Best Temperature Measurement Accuracy | ±1% +3°C |
| DC Voltage Measurement Resolution | 0.01V |
| Dimensions | 78 x 42 x 222mm |
| Resistance Measurement Resolution | 100mΩ |
| Length | 78mm |
| Width | 42mm |
| Power Source | Battery |
| Maximum Operating Temperature | +55°C |
| Display Type | LCD |
| Best Resistance Measurement Accuracy | ±1 % + 5 digits |
| Safety Category | CAT III 1000 V, CAT IV 600V |
| Safety Category Level | CAT IV |
| Weight | 340g |
| Battery Life | 130 h |
| Maximum Conductor Size | 34mm |
| AC Voltage Measurement Resolution | 0.01V |
| Height | 222mm |
| Minimum Operating Temperature | -20°C |
| Absolute Maximum Temperature Measurement | +1000°C |
| Battery Type | 9V 6LR61 |
| Temperature Measurement Resolution | 0.1°C |
| Safety Category Voltage | 600V |
