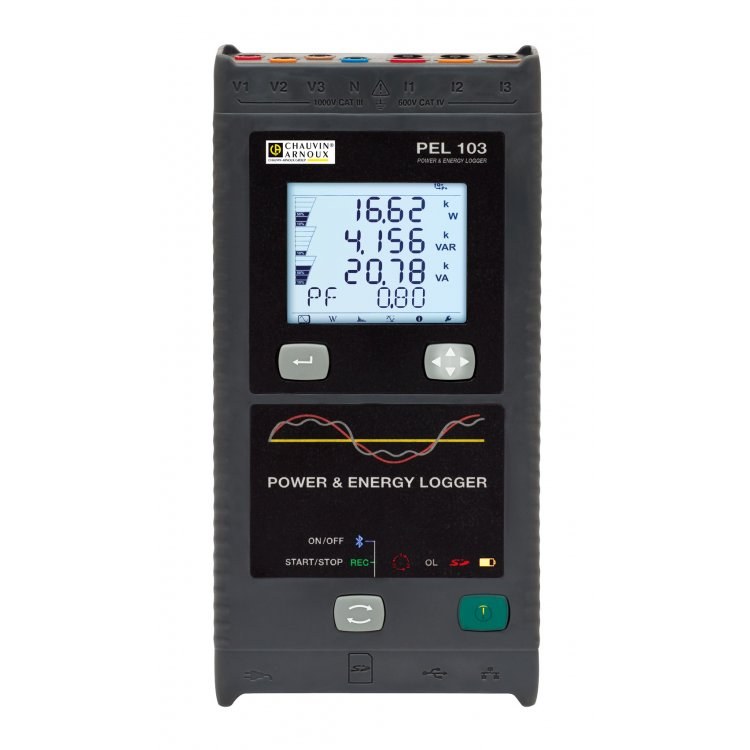

The PEL 103 Power Energy Logger is designed to measure and record the consumption of electrical installations in order to improve energy efficiency and reduce costs.
• Triple digital display
• Suitable for use on single-phase, split-phase and three-phase installations
• Can be installed without cutting off the mains power supply
• Map the electrical consumption on a site
• Gain a real-time snapshot of consumption
• Analyse electrical network quality
• Record harmonics up to the 50th order with phase indication
• Record results to an SD card
• Real-time communication with a PC
• Data transfer and analysis with supplied PEL software
The PEL103 Logger is sold without sensors. Find the MN93A clamp 236-559 and the AmpFLEX™ A193-450 mm clamp 236-565 current sensors here, available separately.
The Chauvin Arnoux is 6-channel power energy data, logger. It has an operating voltage ranges between 100VAC and 250VAC. It is designed to measure and record the consumption of electrical installations to improve energy efficiency and reduce costs.
Features and Benefits
Triple digital display
Suitable for use on single-phase, split-phase and three-phase installations

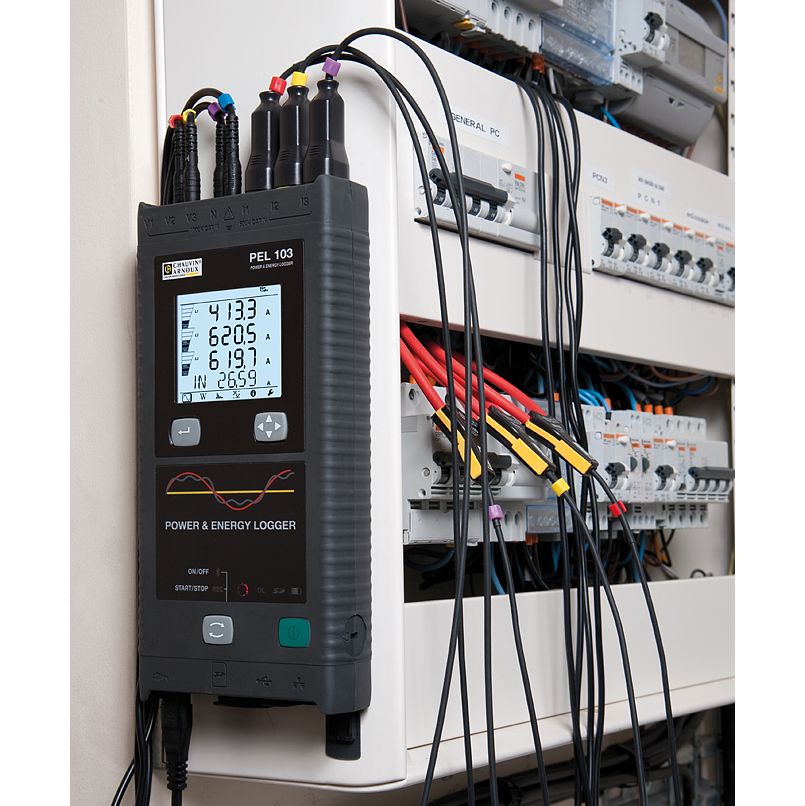

Can be installed without cutting off the mains power supply
Map the electrical consumption on a site
Gain a real-time snapshot of consumption
Analyse electrical network quality
Record harmonics up to the 50th order with phase indication
Record results to an SD card
Real-time communication with a PC
Data transfer and analysis with supplied PEL software
Applications
Used for measuring and record
1. Current
2. Energy
3. Frequency
4. Harmonics
5. Power
6. Voltage
Standards
IEC 61010 600 V CAT IV – 1,000 V CAT III

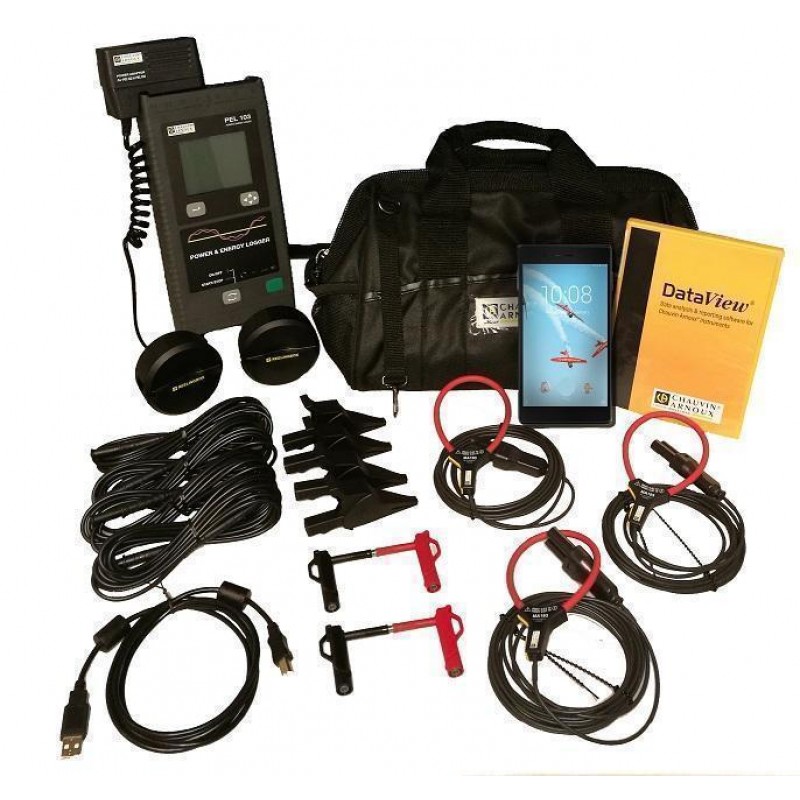

Supplied with
• 4 measurement leads (straight banana, 3 m long, black)
• 4 crocodile clips (black)
• 1 SD card (2 GB)
• 1 set of rings and inserts (for ends of leads and current sensors)
• 1 mains cable
• 1 USB cable (Type A, Type B)
• 1 Multifix mounting systems
• 1 operating manual (on CD)
• 1 bag
• 1 safety datasheet
• PEL Transfer PC software
• 1 quick start-up guide
• SD Card to USB adapter
- Three-phase logger
(voltage / current / power) - Real-time remote display
of your measurements via Ethernet - Data logging on SD card:
up to several months’ recording - Compatible with all electrical networks
- Compact and magnetized
for mounting on metal cabinets - Practical:
implementation of the PEL 103 without cutting off the network - Useful:

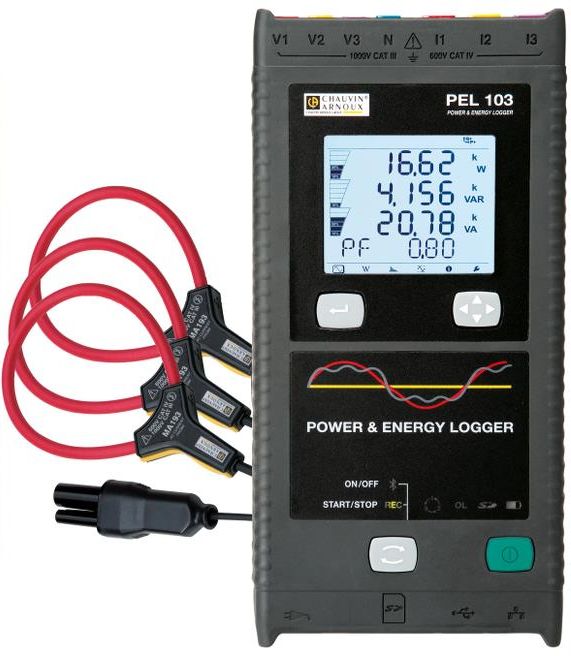

supplied with 3 MiniFlex® MA193 sensors for measurements up to 10,000 A - Carry Bag
With Shoulder Strap
