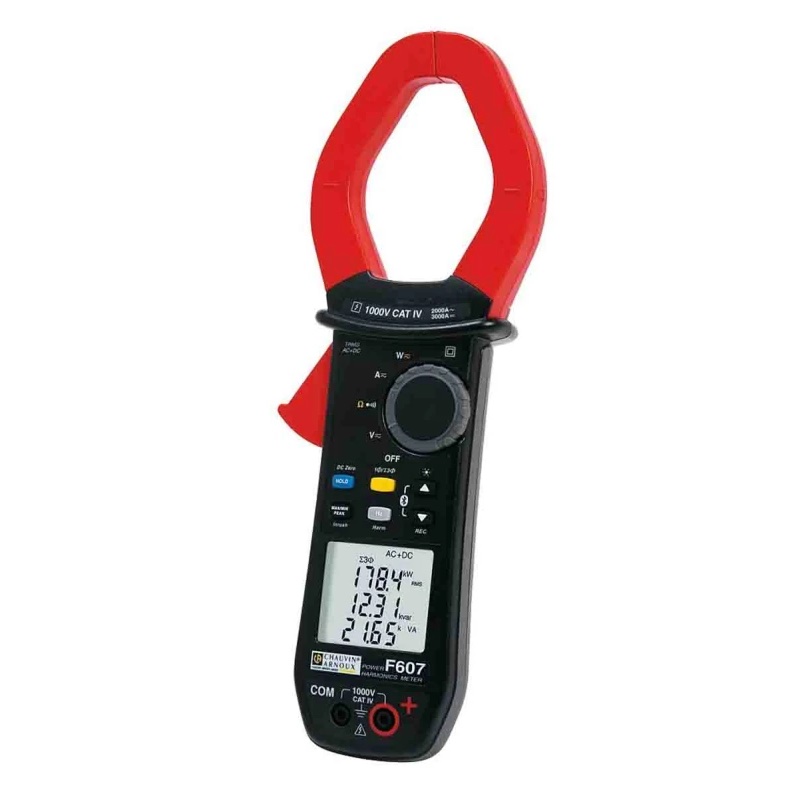

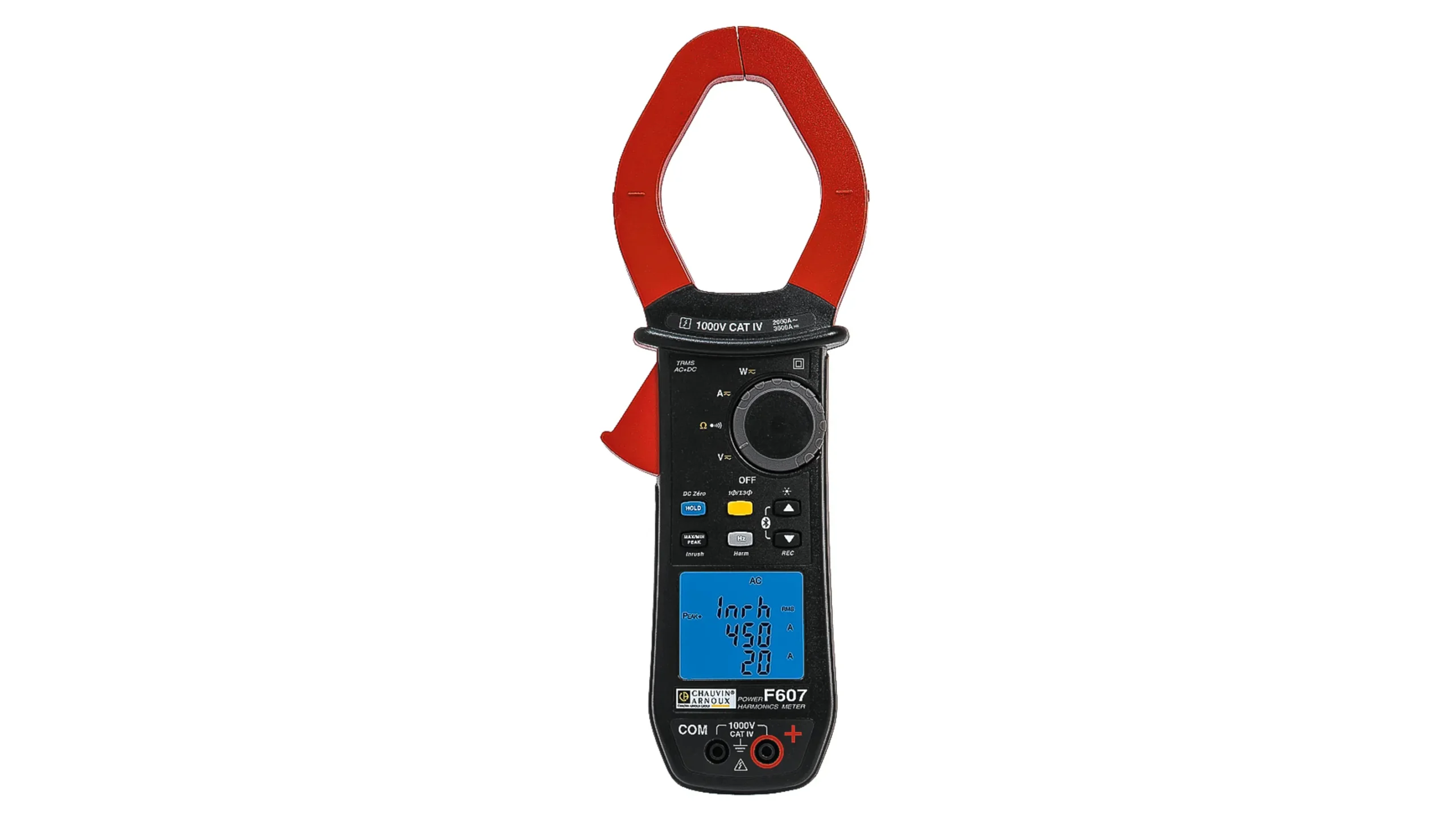

The F607 clamp meter is designed for the high-power LV market in sectors such as electrical power distribution, chemical and petrochemical industries, metallurgy, transport.

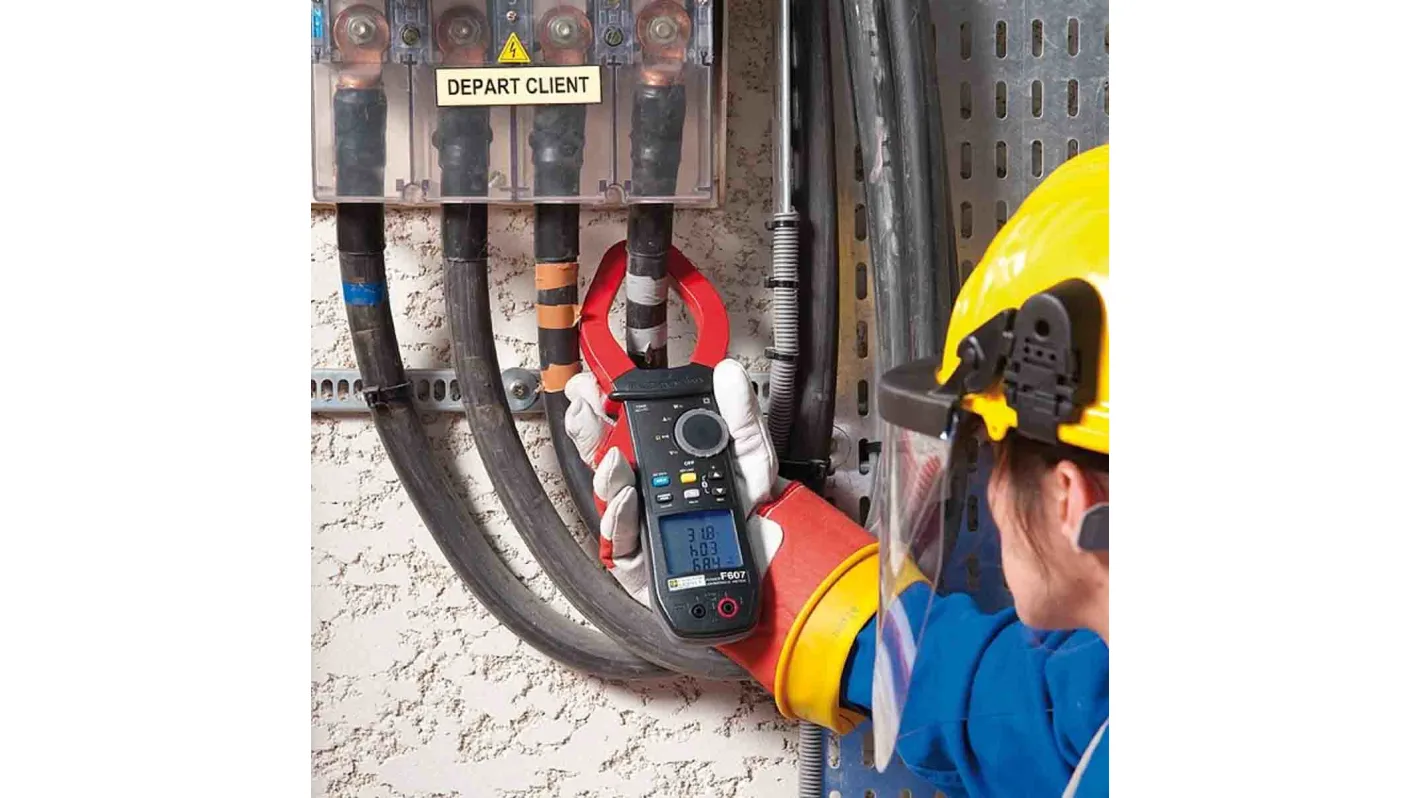

The main applications are maintenance, testing, monitoring, diagnostics, sizing connection.
Equipped with a fast 12-bit TRMS digital acquisition system.
The large backlit triple display makes it easy to read in all circumstances.
Automatic AC/DC detection
W/VA/var, PF and DPF power values
Harmonics up to 25th order, THD-f and THD-r
Ripple function
Resistance and audible continuity
Min, Max and Peak± analysis on all functions
TrueInrush current measurement
Data recording

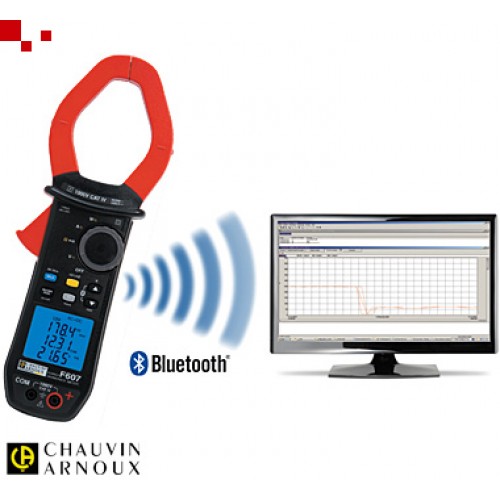

Bluetooth interface and PC software
IP54 protection
Specification
|
Attribute
|
Value
|
|---|---|
| Absolute Maximum AC Current Measurement | 2000A ac |
| Absolute Maximum DC Current Measurement | 3000A dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 99.99kΩ |
| Model Number | F607 |
| Connectivity | Bluetooth |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(1% rdg + 3dgts) |
| Clamp Meter Type | Power/Harmonics Clamp Meter |
| Best AC Current Accuracy | ±(1% rdg + 3dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 3dgts) |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Power, Power Factor, Resistance |
| Jaw Capacity Busbars | 60mm |
| Dimensions | 111 x 41 x 296mm |
| Minimum Operating Temperature | -20°C |
| Height | 41mm |
| AC Voltage Measurement Resolution | 10mV |
| Maximum Conductor Size | 60mm |
| DC Voltage Measurement Resolution | 10mV |
| Battery Life | 350 h |
| Weight | 640g |
| Safety Category Level | CAT III, CAT IV |
| Safety Category | CAT III 1000 V, CAT IV 1000V |
| Best Resistance Measurement Accuracy | ±1 % + 5 digits |
| Display Type | Backlit LCD |
| Maximum Operating Temperature | +55°C |
| Safety Category Voltage | 1000V |
| Battery Type | LR6 |
| Power Source | Battery |
| Width | 111mm |
| Length | 296mm |
| Resistance Measurement Resolution | 100mΩ |
