Chauvin Arnoux CA 745N, LCD Voltage Indicator, 690V ac/dc, Continuity Check, Battery Powered, CAT III 600V

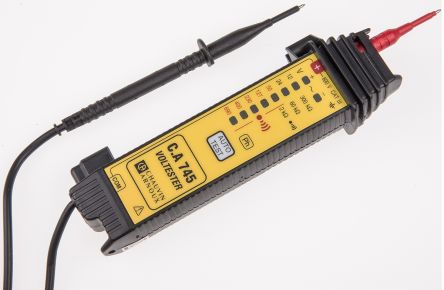

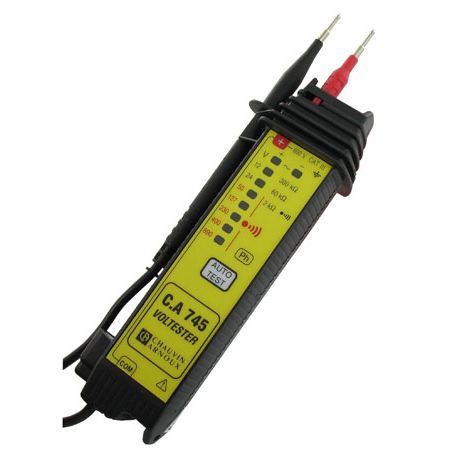

Chauvin Arnoux Voltage and Continuity Tester C.A 745N

The C.A 745N voltage and continuity tester can test AC and DC voltage up to 690 V, with automatic AC or DC detection. It displays the resistance value on 3 thresholds and also offers audible continuity testing. The C.A 745N can be used for single-pole phase testing, there is no risk of tripping high-sensitivity RCDs when performing a phase/earth test.
The tester is equipped with an LCD screen to display the different thresholds in bargraph form. The test probes are removable and easy to replace. There is an integral compartment built into the instrument to store the probes.

Features and Benefits

• Compact
• Easy to use
• Ergonomic design for comfortable handling
• Battery status check
• Single-pole phase test
• AC and DC voltage test (7 thresholds) with automatic AC or DC detection
• Resistance (3 thresholds) with audible and visual alarm if a voltage is present
• Audible continuity
• 600 V CAT III
• Automatic recognition of AC and DC voltage
• Removable test probes

Supplied with

C.A 745N tester, 1 set of black/red extra-fine CAT III / CAT IV test probes, 2 x 1.5 V AAA / LR3 alkaline batteries and 1 user manual in 5 languages

Voltage Level Indicators

A range of voltage testers each available in versions suitable for electronic or electrical applications.
