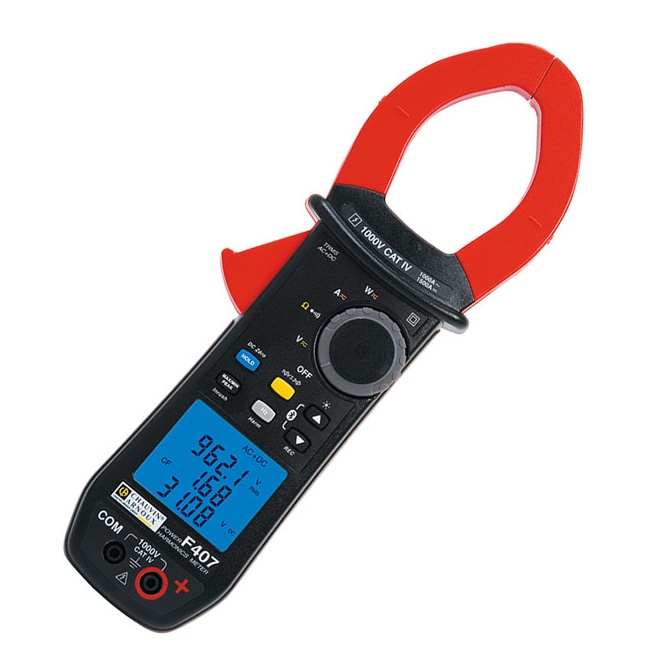

F407 Clamp Meter

F407 Clamp Meter is a clamp meter for electrical diagnostics, commissioning and maintenance. Manufacturer/order reference: P01120947.

Model / SKUP01120947CategoryAC/DC Clamp Meters
Application guidanceLocal product-selection supportOfficial documentsProduct sheets and manualsCommercial enquiryAvailability and formal quotation
Request a quoteAsk on WhatsApp

Share the required measurement, operating range, safety category and application so our team can recommend the right configuration.

Need pricing or technical guidance?

Tell us about your application and our team will recommend the correct configuration and accessories.

Request a quote

Manufacturer resources

Official product documents

Open the manufacturer source for technical literature, software or operating information associated with this instrument.

Description

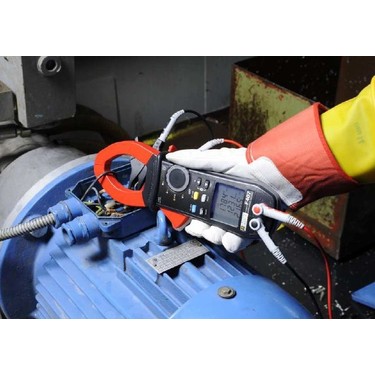

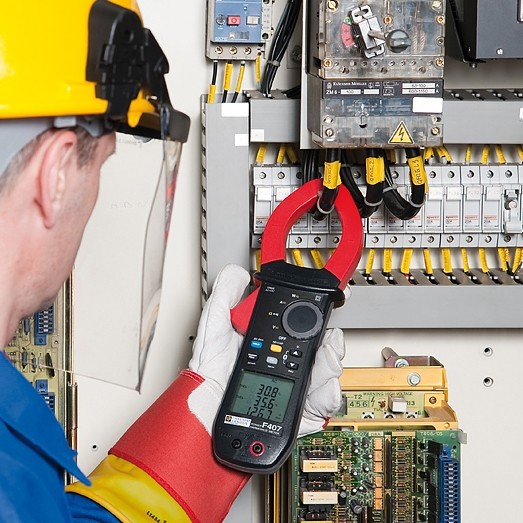

The F407 clamp meter is designed for medium-power low-voltage applications in sectors such as LV electricity production and distribution, industry, railways.
This clamp multimeter is also suitable for lift/elevator technicians and other lifting and transport specialists.
The applications for the clamp multimeter are maintenance, testing, monitoring, diagnostics and connection.
Equipped with a fast 12-bit TRMS digital acquisition system.
The large backlit display makes it easy to read in all circumstances.
Automatic AC/DC detection
AC and DC voltage up to 1000 V
W/VA/var, PF and DPF power values
THD-f and THD-r
Harmonics up to 25th order
Resistance and audible continuity
Min, Max and Peak± analysis on all functions
TrueInrush current measurement
Data recording
Bluetooth interface and PC software
IP54 protection

Specification

Attribute Value
Absolute Maximum AC Current Measurement 1kA ac
Absolute Maximum DC Current Measurement 1.5kA dc
Absolute Maximum AC Voltage Measurement 1000V ac
Absolute Maximum DC Voltage Measurement 1000V dc
Absolute Maximum Resistance Measurement 99.99kΩ
Model Number F407
Connectivity Bluetooth
AC Current Measurement Resolution 10mA
DC Current Measurement Resolution 10mA
Best DC Current Accuracy ±(1% rdg + 3dgts)
Clamp Meter Type Power/Harmonics Clamp Meter
Best AC Current Accuracy ±(1% rdg + 3dgts)
Best AC Voltage Accuracy ±(1% rdg + 3dgts)
Best DC Voltage Accuracy ±(1% rdg + 3dgts)
Best Resistance Measurement Accuracy ±1 % + 5 digits
Minimum Operating Temperature -20°C
Height 41mm
AC Voltage Measurement Resolution 10mV
Maximum Conductor Size 48mm
Battery Life 350 h
Jaw Capacity Busbars 48mm
True RMS Yes
Weight 600g
Safety Category Level CAT III, CAT IV
Display Type LCD – Backlit
Maximum Operating Temperature +55°C
Length 272mm
Resistance Measurement Resolution 100mΩ
Dimensions 92 x 41 x 272mm
DC Voltage Measurement Resolution 10mV
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Power, Power Factor, Resistance
Power Source Battery
Width 92mm
Safety Category Voltage 1000V
Battery Type AA
Safety Category CAT III 1000V

View the official product sheet on Chauvin Arnoux

Additional information

Brand

Chauvin Arnoux
