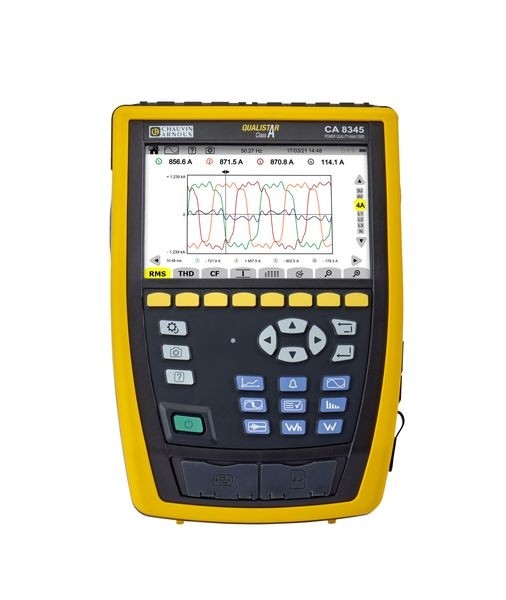

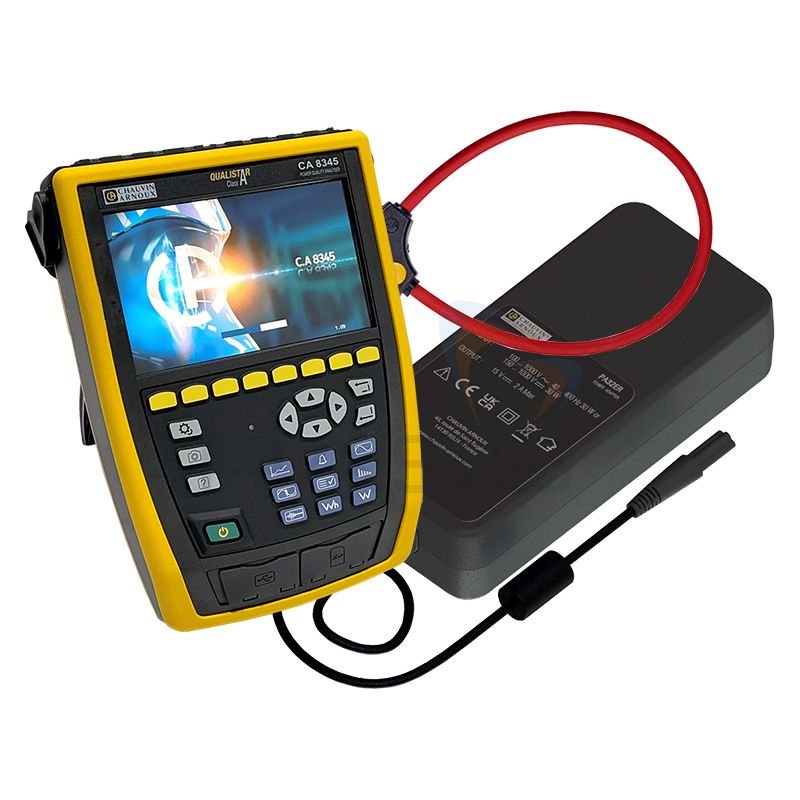

The Chauvin Arnoux 8345 Class A electrical network quality analyser is Intended for inspection and maintenance teams on industrial or tertiary installations , the Qualistars give you a snapshot of the main electrical network quality features. Comfortable to handle and equipped with an intuitive GUI, these analysers offer high measurement accuracy. They also feature numerous calculated values and several processing functions.
Portable energy quality analyser
Instrument compliant with IEC 61000-4-30 edition 3.0 Class A for all functions
Measurements on all installation types three-phase, Aron connection, etc
Electrical network monitoring with setting of alarms
Wide 7-inch colour LCD touch screen
Real-time display of waveforms
DC current sensor power supply
5 x 50 Hz/60 Hz AC/DC voltage inputs
User-friendly, multilingual GUI
Instrument compliant with IEC 61000-4-30 edition 3.0 Class A for all functions
Measurements on all installation types three-phase, Aron connection, etc
Electrical network monitoring with setting of alarms
Wide 7-inch colour LCD touch screen
Real-time display of waveforms
DC current sensor power supply
5 x 50 Hz/60 Hz AC/DC voltage inputs
User-friendly, multilingual GUI
Specifications:
|
Attribute
|
Value
|
|---|---|
| Absolute Maximum Current Measurement | 100 A ac, 100 A ac/dc, 200 A ac, 1000 A ac, 1300 A ac/dc, 10000 A ackA |
| Absolute Maximum Power Measurement | 10 MW, 10 MVAR, 10 MVAmW |
| Number of Phases | 1, 3 |
| Maximum Voltage | 1000 V ac, 1200V dc |
| Best Voltage Measurement Accuracy | 0.1 % |
| Best Current Measurement Accuracy | 0.50% |
| Display Type | Colour LCD Touch Screen |
| Measurement Type | Cos, Current, DPF, Energy values, Flicker, Frequency, Harmonics, Inrush, PF, Power values, Transients, Unbalance, Tan, Voltage |
| Measurement Standards | EN50160, IEC 61000-4-30 |
| Interface Type | SD, USB, WIFI, RJ45 |
| Memory Capacity | 64GB |
| Power Source | Battery, Mains |
| Battery Type | Li-ion |
| Battery Life | 10h |
| Model Number p | CA8345 |
| Width | 200mm |
| Maximum Operating Temperature | 45°C |
| Length | 285mm |
| Height | 55mm |
| Minimum Operating Temperature | -5°C |
| Dimensions | 200 x 285 x 55mm |
| Minimum Frequency | 42.50 Hz |
| Maximum Frequency | 69Hz |
| Weight | 1.9kg |
