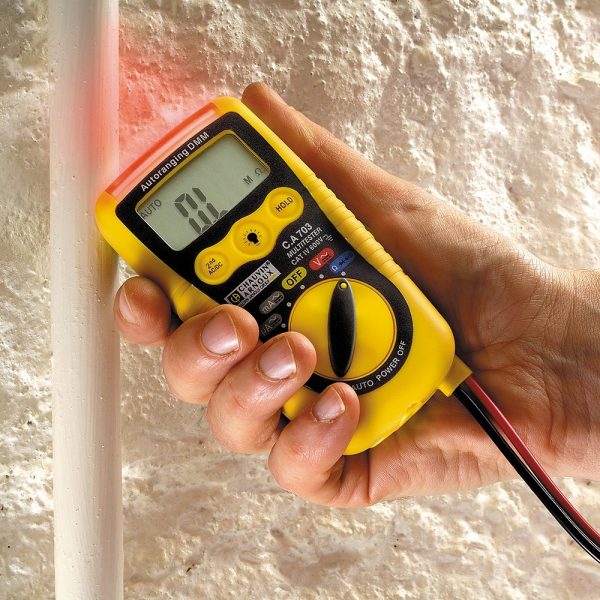

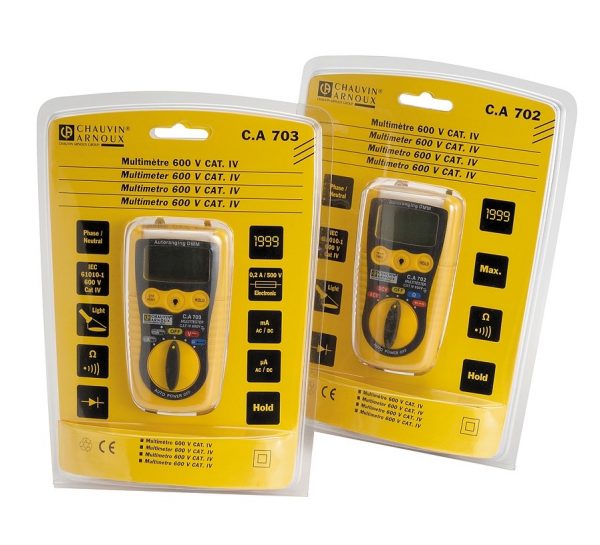

The CA703 is the perfect device for those looking for a pocket-sized and portable digital Multimeter. Its portable nature makes it convenient for electrical checks and measurements around the home, in workspaces or anywhere else you need to test. The Chauvin Arnoux CA 703 Digital Multimeter is the improved version of the CA702. It has very similar functionalities, the CA703 includes the ability to measure AC/DC current and comes with a built in it lets you test your outlets and cables. Even with poor lighting, and locate an electrical panel and any open circuit-breakers in the dark.

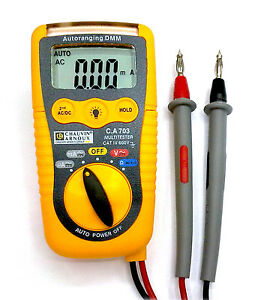

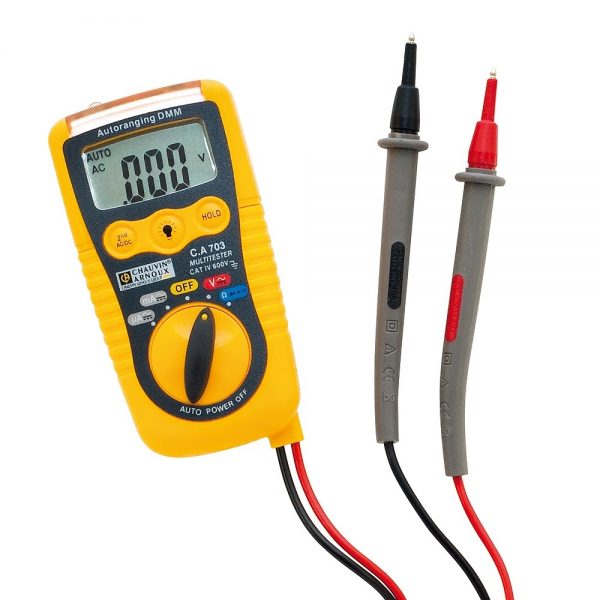

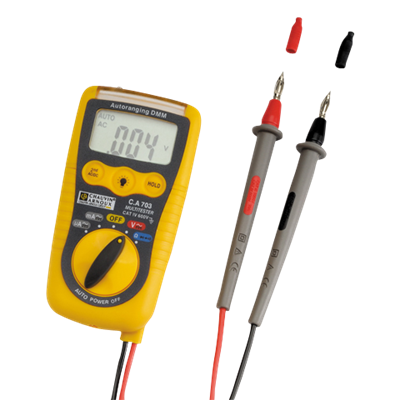

With its compact design and built-in test probes, you can take CA 703 with you everywhere you go. With its pen shape and clip, you can keep it in a pocket, ready for use at all times. In addition, the moulded body provides an outstandingly firm and comfortable grip.
• AC and DC voltages: 200 mV to 600 V
• Current: 200 μA to 200 mA
• Resistance: 200 OHM to 20 MOHM
• Continuity test (buzzer) and diode test
• Safety: IEC 61010 – 600 V CAT IV / 1000 V CAT III

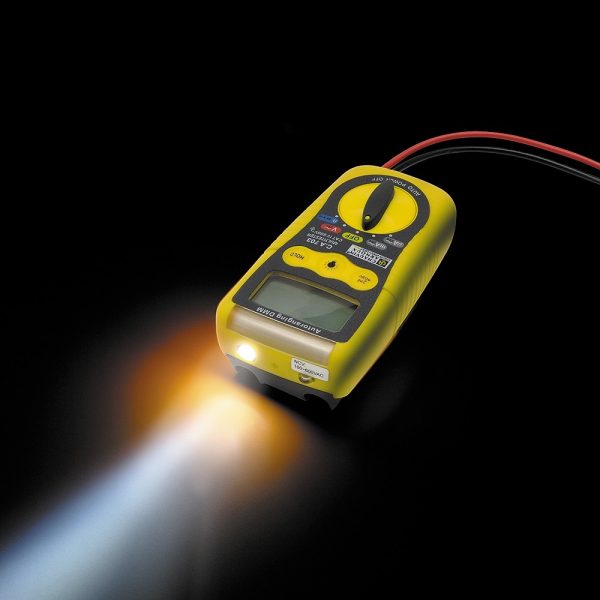

• Built-in torch
• Pocket sized digital Multimeter with built-in leads
| Attribute | Value |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum DC Current Measurement | 200mA dc |
| Absolute Maximum AC Current Measurement | 200mA ac |
| Absolute Maximum Resistance Measurement | 20MΩ |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, NCV Non-contact voltage, Resistance |
| Maximum Frequency | 400Hz |
| Display Type | Digital, LCD |
| Model Number p | CA 703 |
| Maximum Operating Temperature | +40°C |
| Width | 55mm |
| Best AC Current Accuracy | ±1 % + 8 Digits |
| Dimensions | 104 x 55 x 32.5mm |
| Battery Type | AAA 1.5 V, IEC LR03 |
| Safety Category Voltage | CAT III 1000 V, CAT IV 600 V |
| Best DC Current Accuracy | ±2 % + 8 digits |
| Best Resistance Measurement Accuracy | ±0.8 % + 5 digits |
| Best DC Voltage Accuracy | ±0.5 % + 3 digits |
| Length | 32.5mm |
| Safety Category Level | CAT IV |
| Weight | 145g |
| Best AC Voltage Accuracy | ±1 % + 8 digits |
| Minimum Operating Temperature | 0°C |
| Height | 104mm |
