Description

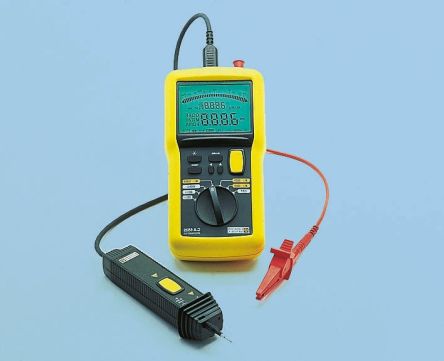

CA6521, CA6523 and CA6525 Insulation Testers
The range of megohmmeter models C.A 6521, C.A 6523 and C.A 6525 make measurement both straightforward and convenient.
Digital LCD with simulated analogue arc bargraph200mA continuity test capabilityContinuity buzzerLead resistance compensation (Not CA6521)Auto power down to save batteriesBattery life indicationProgrammable thresholds with buzzer alarmTimer measurements over long periods (CA6525 only)IP54 ingress protection
Supplied with
6 x LR6 batteries, “Hands-free” shoulder bag and test leads.
| Model Number p | C.A 6525 |
| Tester Type | Insulation & Continuity Tester |
| Minimum Test Voltage | 250V |
| Maximum Test Voltage | 1000V |
| Maximum Insulation Resistance Measurement | 2000MΩ |
| Display Type | Analogue |
| Test Current | 200mA |
| Battery Type | AA |
| Power Source | Battery |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +55°C |
| Safety Category Voltage | 600V |
| Safety Category Level | CAT III |
| Safety Category | CAT III 600 V |
| Weight | 835g |
| Dimensions | 211 x 108 x 60mm |
| Height | 60mm |
| Length | 211mm |
| Width | 108mm |
